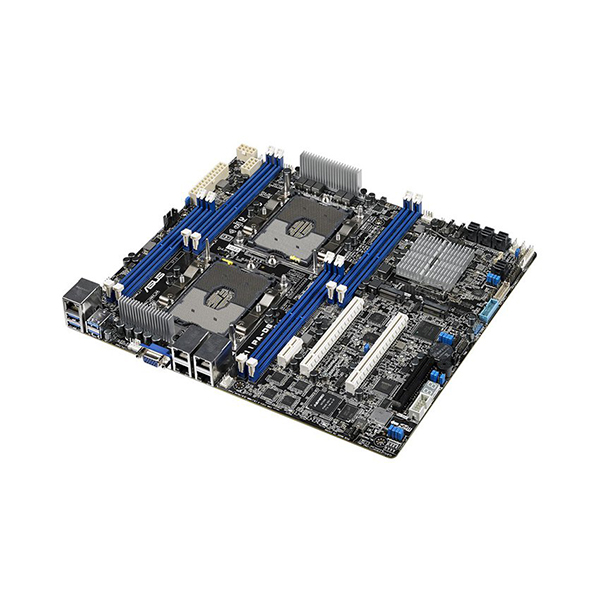

Mainboard Asus Z11PA-D8

Giá bán: Liên hệ

CPU: 1st and 2nd Gen Xeon® Scalable Processor
RAM: DDR4 RDIMM/LRDIMM 2400/2666/2933
Chipset: Intel C621

Mô tả

Processor / System Bus	2 x Socket P (LGA 3647) 1st and 2nd Gen Xeon® Scalable Processor Family (165W) *Refer to support page for more information UPI (10.4 GT/s)
Core Logic	Intel® Lewisburg PCH C621
Memory	Total Slots : 8 (4-channel per CPU, 4 DIMM per CPU) Capacity : Maximum up to 256GB RDIMM/Maximum up to 512GB LRDIMM/Maximum up to 1024GB LR-DIMM 3DS Memory Type : 2933/2666/2400 Memory Size : 32GB, 16GB, 8GB, 4GB RDIMM 64GB, 32GB LRDIMM 128GB, 64GB LR-DIMM 3DS * Refer to support page for more information * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU.
Expansion Slots	Total Slot : 3 Slot Location 1 : PCI-E x8 Slot Location 3 : PCI-E x16 Slot Location 5 : PCI-E x16 Slot Location 6 : MIO Slot for Audio card
Form Factor	CEB (12″x10.5″, 305mm x 267mm)
ASUS Features	ASUS Fan Speed control technology ASUS Control Center
Storage	SATA Controller : Intel® C621 12 x SATA3 6Gb/s ports (12 by 3 Mini-SAS Connector) Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows) (Support Software RAID 0, 1, 5, 10 ) 4 SATA3 6Gb/s port by 1miniSAS connector (Marvell 88SE9230) Intel^®VROC (For Linux/Windows) (Support Software RAID ) SAS Controller : ASUS PIKE II 3008-8i 8-port SAS 12G RAID card ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card
Networking	4 x Intel® I210AT + 1 x Mgmt LAN
Graphic	Aspeed AST2500 with 64MB VRAM
On Board I/O	1 x TPM header 1 x PSU Power Connector (24-pin SSI power connector + 8-pin SSI 12V + 8-pin SSI 12V power connector) 1 x USB 3.0 pin header , Up to 2 Devices 1 x USB 2.0 pin header , Up to 2 Devices 8 x Fan Header , 4pin (3pin/4pin fan dual support) 1 x Serial Port Header 1 x SMBus 1 x Chassis Intruder 4 x Front LAN LED 2 x M.2 Connector , NGFF Type : 22110/2280/2260/2242 1 x VROC Key Header 1 x Q-Code/Port 80 LED
Back I/O Ports	4 x USB 3.0 ports 1 x VGA port 4 x RJ-45 GbE LAN ports 1 x RJ-45 Mgmt LAN portRear Switch/LED: 1 x Power switch 1 x Message LED 1 x HDD LED 1 x Location LED 1 x BMC LED 1 x P5V LED
Management Solution	ACC(ASUS Control Center) Onboard ASMB9-iKVM for KVM-over-Internet
Environment	Operation temperature: 10°C ~ 35°C Non operation temperature: -40°C ~ 70°C Non operation humidity: 20% ~ 90% (Non condensing)
Weight	Gift Box (1-in-1) Net Weight : 1.24 KG Gross Weight : 2.32 KGBulk Pack (10-in-1) Net Weight : 1.24 KG Gross Weight : 16.26 KG
Accessories	I/O Shield 1 x Supporting DVD 2 x LGA3647 carrier
Monitoring	CPU Temperature Fan RPM
