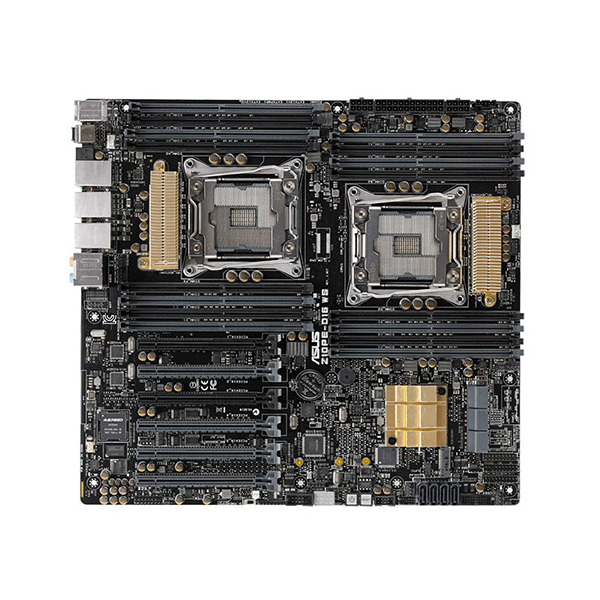

Mainboard Asus Z10PE-D16

Giá bán: Liên hệ

CPU: Intel Xeon processor E5-2600 v3, v4 product family
RAM: DDR4 RDIMM/LRDIMM 2400/2133/1866/1600/1333
Chipset: Intel C612

Mô tả

Processor / System Bus	2 x Socket R3 (LGA 2011-3; Square type 80x80mm;The maximum length of the heatsink screw thread is 3.7mm.) Intel^® Xeon^® processor E5-2600 v4 product family Intel^® Xeon^® processor E5-2600 v3 product family QPI 6.4 / 8.0 / 9.6 GT/s
Core Logic	Intel® C612 PCH
Memory	Total Slots : 16 (4-channel per CPU, 8 DIMM per CPU) Capacity : Maximum up to 1024GB LRDIMM Memory Type : DDR4 2400 /2133 /1866/1600/1333 RDIMM* DDR4 2400 /2133 /1866/1600/1333 LRDIMM* Memory Size : 32GB, 16GB, 8GB, 4GB RDIMM 64GB, 32GB LRDIMM * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU.
Expansion Slots	Total Slot : 5 Slot Location 1 : PCI-E x8 (Gen3 X4 Link), MIO supported Slot Location 2 : PCI-E x16 (Gen3 X16 Link) Slot Location 3 : PCI-E x8 (Gen3 X8 Link) Slot Location 4 : PCI-E x16 (Gen3 X16 Link) Slot Location 6 : PCI-E x16 (Gen3 X16 Link)
Form Factor	EEB (12″x13″, 305mm x 330mm)
ASUS Features	FAN speed control Rack Ready (Rack and Pedestal dual use) ASWM Enterprise
Storage	SATA Controller : Intel® C612 10 x SATA3 6Gb/s ports or 9 x SATA3 6Gb/s ports + 1 x M.2 connector Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only) (Support Software RAID 0, 1, 5, 10 ) LSI® MegaRAID (For Linux/Windows) (Support Software RAID 0, 1, 10 ) SAS Controller : ASUS PIKE II 3008 8-port SAS HBA card(Optional) ASUS PIKE II 3108 8-port SAS HW RAID card(Optional)
Networking	1 x Dual Port Intel Ethernet Controller i350-AM2 + 1 x Mgmt LAN
Graphic	Aspeed AST2400 with 32MB VRAM
On Board I/O	1 x TPM header 1 x PSU Power Connector (24-pin SSI power connector + 8-pin SSI 12V + 8-pin SSI 12V power connector) 1 x USB 3.0 pin header , Up to 2 Devices 1 x USB 2.0 pin header 9 x Fan Header , 4pin 1 x SMBus 1 x Chassis Intruder 2 x Front LAN LED 1 x Serial Port Header 1 x M.2 Connector , NGFF Type : 2242, Capacity : 16~128GB
Back I/O Ports	2 x USB 3.1 Gen 1 2 x USB 2.0 1 x VGA Port 2 x GbE LAN 1 x Mgmt LAN 1 x PS/2 KB/Mouse
Management Solution	ASWM Enterprise ASMB8-iKVM for KVM-over-Internet
Environment	Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing)
Weight	Gift Box (1-in-1) Net Weight : 1.67 KG Gross Weight : 2.8 KGBulk Pack (10-in-1) Net Weight : 18.3 KG Gross Weight : 20.2 KG
Accessories	Gift Box (1-in-1) 3 x Support DVD 1 x IO Shield 1 x Cable SetBulk Pack (10-in-1) 3 x Support DVD 1 x IO Shield
Monitoring	CPU Temperature Fan RPM
Note	* Please refer to www.asus.com for latest momory AVL update 2400/2133 MT/s@1DPC only
