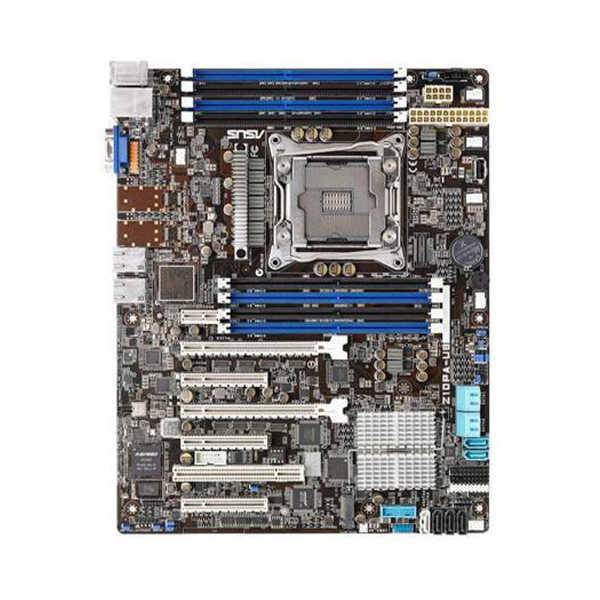

Mainboard Asus Z10PA-U8

Giá bán: Liên hệ

CPU:
– Intel® Xeon® processor E5-1600 v3, v4 product family
– Intel® Xeon® processor E5-2600 v3, v4 product family
– Intel® Core™ i7 Processors for LGA 2011-3 Socket
RAM: DDR4 RDIMM/LRDIMM 2400/2133/1866/1600/1333
Chipset: Intel C612

Mô tả

Processor / System Bus	1 x Socket R3 (LGA 2011-3; Square type 80x80mm;The maximum length of the heatsink screw thread is 3.7mm.) Intel^® Xeon^® processor E5-1600 v4 product family Intel^® Xeon^® processor E5-1600 v3 product family Intel^® Xeon^® processor E5-2600 v4 product family Intel^® Xeon^® processor E5-2600 v3 product family Intel^® Core™ i7 Processors for LGA 2011-3 Socket
Core Logic	Intel® C612 PCH
Memory	Total Slots : 8 (4-channel per CPU, 8 DIMM per CPU) Capacity : Maximum up to 512GB LRDIMM Memory Type : DDR4 2400 /1866/2133 /1600/1333 RDIMM DDR4 2400 /1866/2133 /1600/1333 LRDIMM UDIMM non ECC and with ECC³ Memory Size :* 32GB, 16GB, 8GB, 4GB RDIMM 64GB, 32GB LRDIMM 16GB, 8GB, 4GB UDIMM * Refer to support page for more information * Actual memory frequency differs from Intel CPU types and memory module. Please check Intel official site for more detail about the memory types supported by each CPU.
Expansion Slots	Total Slot : 6 Slot Location 1 : PCI-E x8 (Gen2 X4 Link) Slot Location 2 : PCI 32bit/33MHz Slot Location 3 : PCI-E x8 (Gen3 X8 Link) Slot Location 4 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 3 is occupied Slot Location 5 : PCI-E x8 (Gen3 X8 Link) Slot Location 6 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 5 is occupied Slot Location 7 : MIO Slot for Audio card
Form Factor	ATX (12″x9.6″, 305mm x 244mm) *¹
ASUS Features	FAN speed control Rack Ready (Rack and Pedestal dual use) ASWM Enterprise
Storage	SATA Controller : Intel® C612 10 x SATA3 6Gb/s ports or 9 x SATA3 6Gb/s ports + 1 x M.2 connector ² Intel® Rapid Storage Technology Enterprise(RSTe) (For Windows Only) (Support Software RAID 0, 1, 5, 10 ) LSI® MegaRAID (For Linux/Windows) (Support Software RAID 0, 1, 10 ) SAS Controller :* ASUS PIKE II 3008 8-port SAS HBA card(Optional) ASUS PIKE II 3108 8-port SAS HW RAID card(Optional)
Networking	2 x Intel® I210AT + 1 x Mgmt LAN
Graphic	Aspeed AST2400 with 32MB VRAM
On Board I/O	1 x TPM header 1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector) 1 x Management Connector , Onboard socket for optional management card 1 x USB 3.0 pin header , Up to 2 Devices 1 x USB 2.0 pin header , Up to 2 Devices 6 x Fan Header , 4pin 1 x SMBus 1 x Chassis Intruder 2 x Front LAN LED 1 x Serial Port Header 1 x M.2 Connector , NGFF Type : 2242, Capacity : 16~128GB
Back I/O Ports	2 x USB 3.1 Gen 1 2 x USB 2.0 1 x VGA Port 2 x GbE LAN 1 x Mgmt LAN 1 x PS/2 KB/Mouse
Management Solution	ASWM Enterprise Optional ASMB8-iKVM for KVM-over-Internet
Environment	Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing)
Weight	Gift Box (1-in-1) Net Weight : 1.281 KG Gross Weight : 1.7 KGBulk Pack (10-in-1) Net Weight : 9.79 KG Gross Weight : 12 KG
Accessories	Gift Box (1-in-1) with ASMB8-IKVM 1 x ASMB8-iKVM Module 3 x Support DVD 1 x IO Shield 1 x Cable SetGift Box (1-in-1) 2 x Support DVD 1 x IO Shield 1 x Cable SetBulk Pack (10-in-1) with ASMB8-IKVM 1 x ASMB8-iKVM Module 3 x Support DVD 1 x IO ShieldBulk Pack (10-in-1) 2 x Support DVD 1 x IO Shield
Monitoring	CPU Temperature Fan RPM
Note	* Please refer to www.asus.com for latest momory AVL update 1 EEB Mounting Hole Locations 2 9 x SATA3 6Gb/s ports + 1 x M.2 connector(SATA 6Gb/s) *3 UDIMM available with Core i7 only
